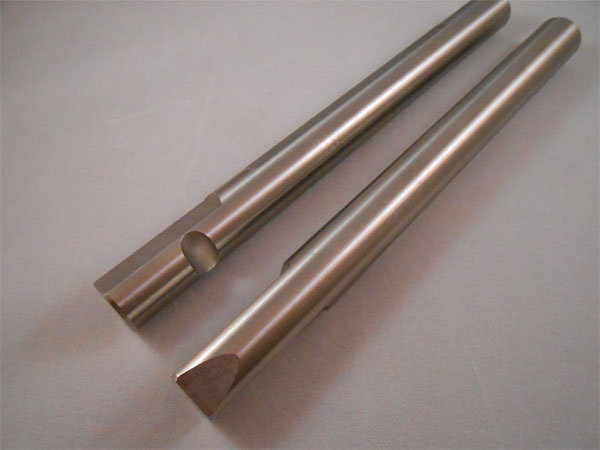

Production Broaching

(Click on thumbnail to enlarge)

Production Broaching

(Click on thumbnail to enlarge)

Production Broaching

(Click on thumbnail to enlarge)

Illinois Broaching Co., Inc. has been providing production broaching services since 1946. Our ISO 9001 certified facility houses both vertical and horizontal broaches capable of stroke lengths up to 90″ and 50 tons of pull force. We process parts fabricated from all types of metal, including stainless steel, aluminum, brass, bronze, and copper, as well as more delicate materials, such as plastic and canvas. Our lifting capacity allows us to process parts weighing up to 300 lbs. When you choose Illinois Broaching, you are guaranteed high quality workmanship combined with short lead times and competitive pricing.

Broaching processes, such as internal, external, pot, and blind spline are executed to form all manner of straights, serrations, keyways, and many other flat, circular, and even extremely intricate profiles. We handle volumes from single units to production runs of one million pieces or more. Secondary services include heat treating, plating, brazing, and assembly, making us you single source for part finishing needs. We have experience in many industries, including agricultural and fastener, and carry FFL certification for firearms industry. Lead times are as short 5 days, and rush services are available upon request.

For more information about how our production broaching services can expedite your part production needs, contact us today.

Production Broaching Capabilities

Broaching Processes
Broaching
Linear
Pot
Surface
Line
Involute
Straight
Polygon
Hexagon
Single D
Double D
Square
Serrations
Keyways
Inverted Keyways
Triangles
Size
Profile
Blind Splines
Blind Keys
Equipment
Vertical
Horizontal
Indexing Capability
Stroke LengthUp to 90 in
Broach LengthUp to 84 in
Broaching Pull50 tons
Part WeightUp to 300 lbs.
Lifting CapacityUp to 1,000 lbs.
Materials
Stainless Steel
Monel
Aluminum
Brass
Bronze
Copper
Titanium
Plastic
Canvas
Secondary Services Offered
Assembly
Brazing
Heat Treating
Plating
Passivation
Production Volume1 to 1,000,000 units
Lead Times Available
3 to 5 days
1 to 2 day service available upon request

Additional Information

Industry Focus
Gun Manufacturers
Agricultural
Aerospace
Cold Heading
Fasteners
Screw Machine Parts
Industry StandardsISO 9001 Certified
File FormatsCAD Capabilities
