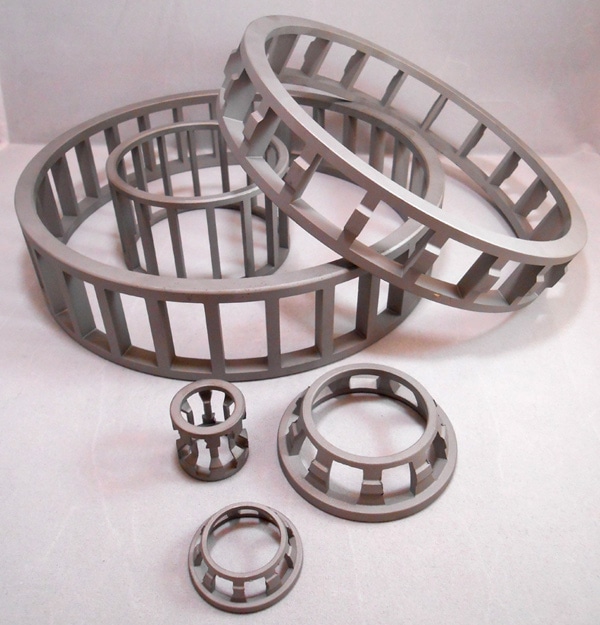

Manufacturing of Roller Retainer Pockets in Steel and Bronze Material for the Aviation Industry

(Click on thumbnail to enlarge)

Project: Manufacturing of Roller Retainer Pockets in Steel and Bronze
Industry: Aviation

Expert craftsmanship and attention to detail has enabled Illinois Broaching Co., Inc. to successfully meet the quality and delivery demands of the aviation industry for many years. Our expertise was called upon to manufacture these roller retainer pockets, designed for use in flight safety equipment. Specifications called for bronze and AQ 4340 steel, ideal for high stress parts. Primary operations consisted of CNC roughing, drilling, and broaching of the work pieces while maintaining a ±.0015″ tolerance on the outer diameter and a ±.002″ tolerance on the inner diameter and length. A deburring operation ensures that the finish is completely smooth and does not contain even the smallest defect.

As an ISO 9001 certified organization, we take quality seriously. Rigorous gage and dimensional inspections ensure customer specifications are met. Production runs for these roller retainer pockets range from 5 to 10,000 pieces per order.

To learn more about this project, or how our expertise can effectively meet the demands of your next project, contact us today.

Highlights of this Aircraft Component Manufacturing Project

Product DescriptionFlight Safety Equipment
Precision CNC Milling Broaching Capabilities Applied/Processes
Primary:
CNC Milling – Roughing, Drilling, Tapping
Broaching
Secondary:
Deburring
Overall Part Dimensions
OD: Ø .7500 – 10.00" ± 0.0015
ID: Ø 5/8 – 9.750" ± 0.002
Length: ¼ - 2.500" ± 0.002
Tightest Tolerances ± 0.0015"
Material UsedAQ 4340 Steel and Bronze
In process testing/inspection performed Gage Inspection, Dimensional Inspection
Industry for UseAviation Industry
Volume 5 – 10,000
Delivery LocationIndiana
Standards MetCustomer Specifications, CAD Drawing
Product NameManufacturing Roller Retainer Pockets
